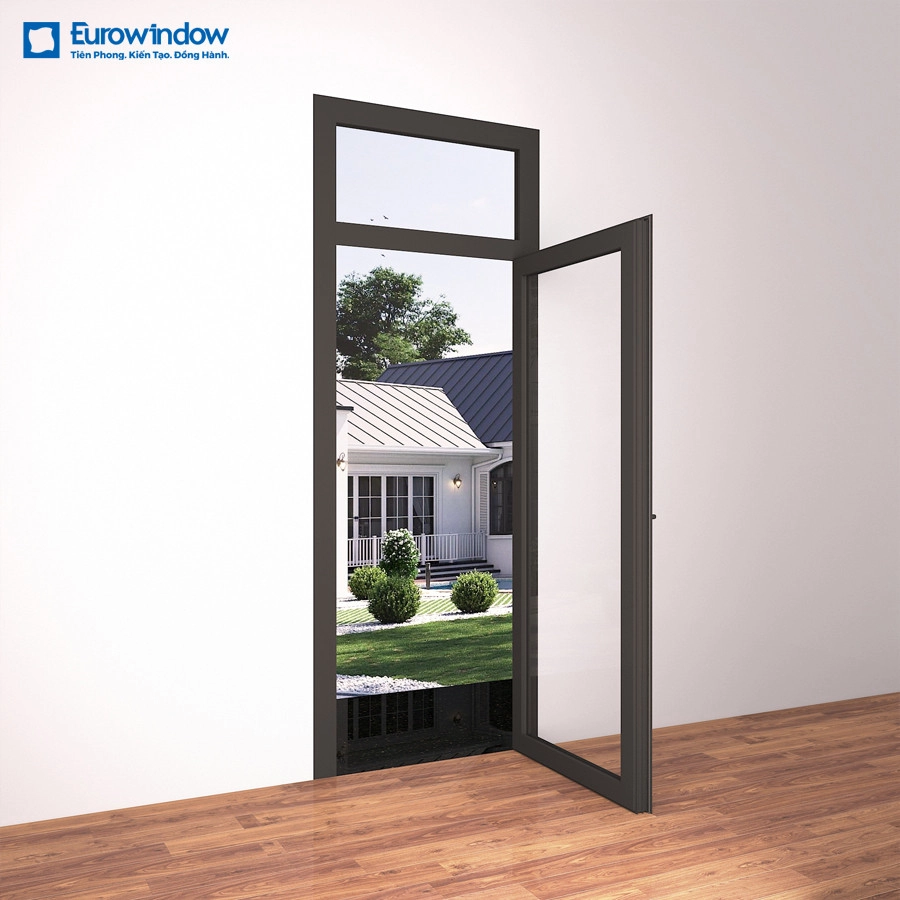

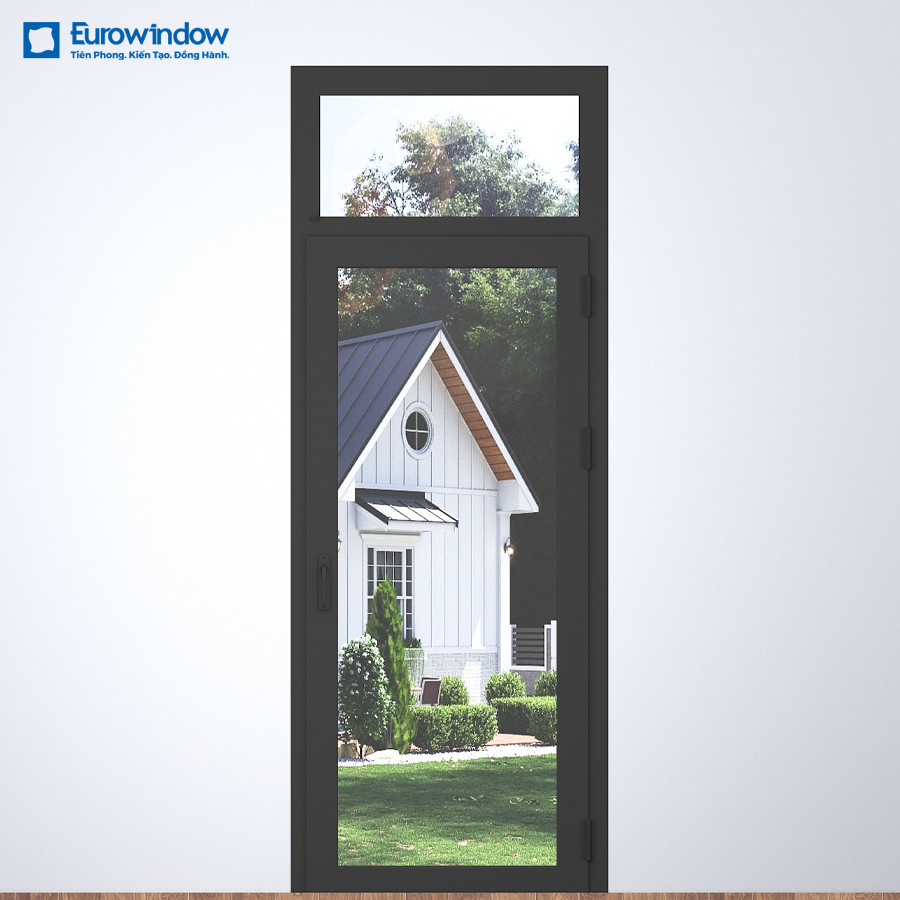

Aluminum single swing door

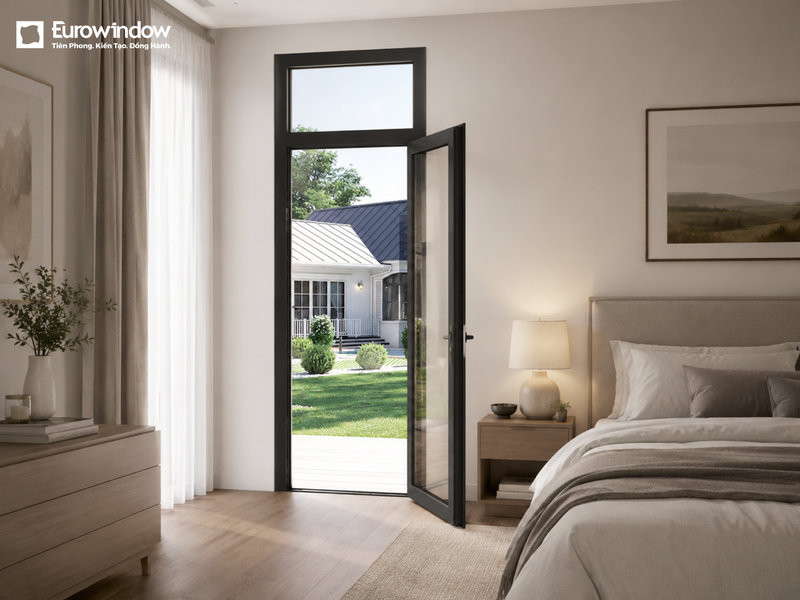

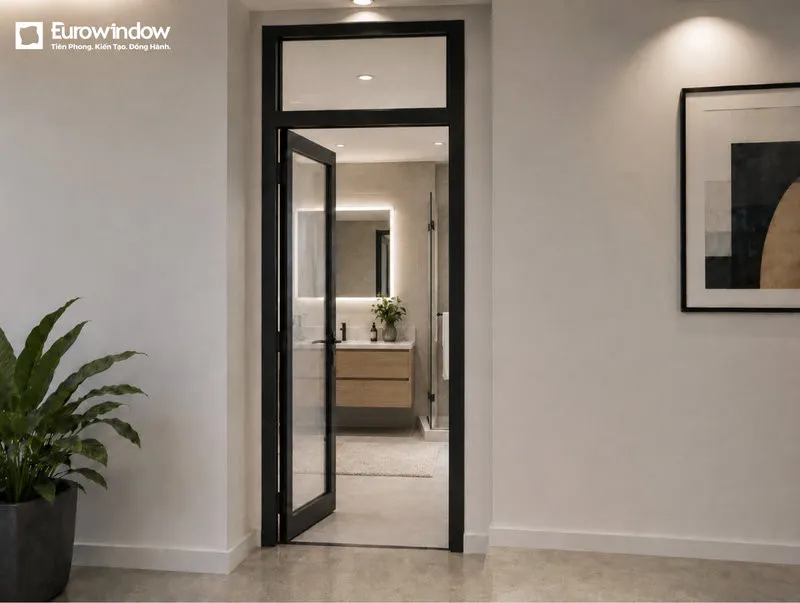

Eurowindow’s single-leaf inward-opening aluminum glass door is manufactured according to the actual structural opening dimensions of each project. A commonly used clear opening size is approximately 810 × 2,120 mm, which can be customized according to the Lỗ Ban ruler for different installation locations such as main entrances, bedrooms, or bathrooms.

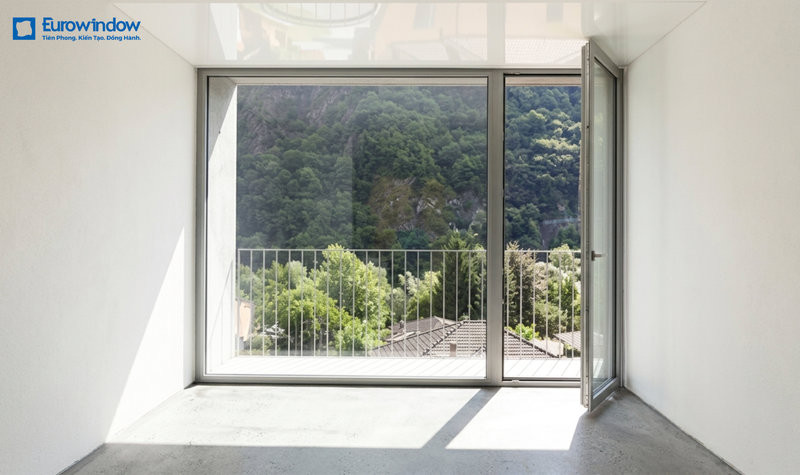

The door leaf can open up to 180°, helping maximize the opening width, facilitate movement, and improve air circulation. The product uses powder-coated 6063-T5 aluminum profiles, a three-layer EPDM gasket system, safety glass, and synchronized hardware, ensuring durability, stable operation, watertightness, airtightness, and enhanced sound and thermal insulation. It is suitable for room entrances, balcony doors, secondary entrances, or passageways with limited space.

Functional and Feng Shui-Compliant Dimensions for Eurowindow Single-Leaf Inward-Opening Doors

Eurowindow’s single-leaf inward-opening aluminum glass doors are manufactured according to the actual structural opening dimensions of each project while balancing functionality, operational durability, and Feng Shui considerations. Dimensions can be selected to fall within favorable sections of the Lỗ Ban ruler, which are traditionally associated with good fortune and prosperity for homeowners.

Depending on the aluminum system, Eurowindow single-leaf inward-opening aluminum glass doors can be manufactured with a leaf width of up to 1,200 mm and a height of up to 3,000–3,200 mm.

However, for single-leaf entrance doors, one of the most commonly used clear opening dimensions—the unobstructed opening through which people, light, and air can pass—is 810 × 2,120 mm (width × height). These dimensions provide a balanced configuration for convenient use while also falling within favorable sections of the Lỗ Ban ruler. They are therefore widely used for apartment entrances, room doors, and secondary entrances.

Depending on the installation location, clear opening dimensions can be selected according to favorable sections of the Lỗ Ban ruler, such as Quý Nhân, Tài Lộc, Phú Quý, and Tiến Bảo. The table below provides several commonly used dimensions for reference.

Eurowindow’s single-leaf inward-opening aluminum glass doors are manufactured according to the actual structural openings of each project. During construction, the required structural opening should be calculated based on the clear opening dimensions and the thickness of the outer frame.

Aluminum door frames are typically around 45–60 mm thick. For example, if a door has a clear opening of 810 × 2,120 mm and a 50 mm frame thickness, the structural opening should be prepared at approximately 910 × 2,170 mm.

Eurowindow’s technical team can conduct on-site surveys and provide recommendations on dimensions based on the Lỗ Ban ruler while optimizing the configuration for each aluminum system, helping meet both functional requirements and the homeowner’s Feng Shui preferences.

CONTACT FOR CONSULTATION

180° Inward Opening for Flexible Space Utilization

The single-leaf inward-opening aluminum glass door is designed to open toward the interior, making it convenient to operate, clean, and maintain. With a maximum opening angle of 180°, the door provides a wide passage, improves air circulation, and creates flexible connections between different areas of a building.

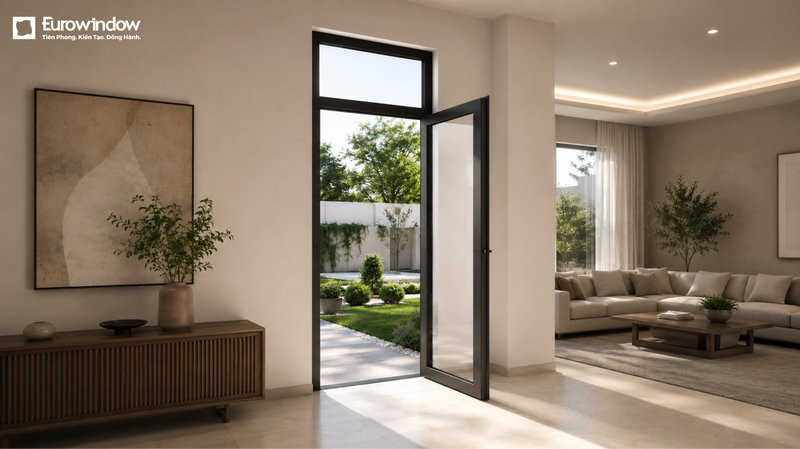

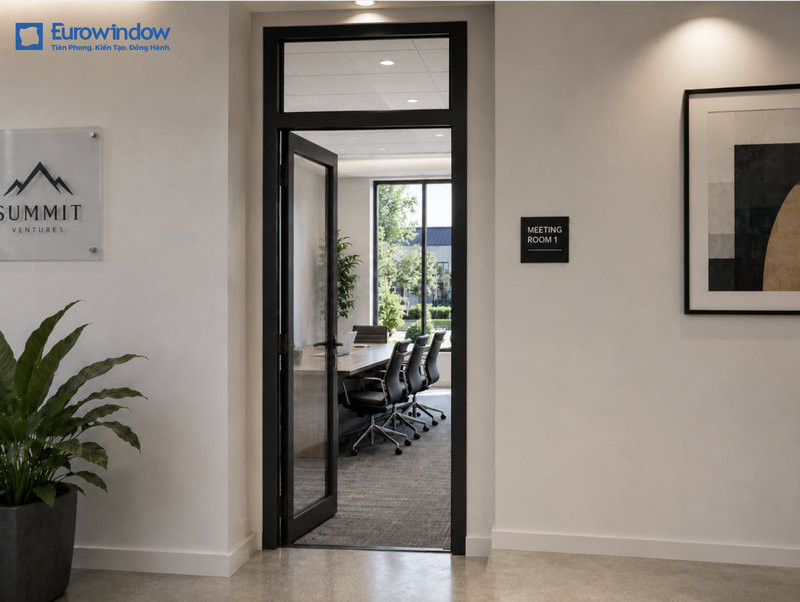

The single-leaf inward-opening aluminum glass door maximizes the clear opening width.

Reinforced 6063-T5 Aluminum Profiles for Enhanced Structural Durability

The door frame and leaf frame are manufactured from powder-coated 6063-T5 aluminum profiles, featuring hollow chambers and carefully engineered reinforcing ribs to improve structural strength.

The profile structure helps the door maintain rigidity and stability throughout operation while making it suitable for Vietnam’s weather conditions.

Technical grooves and drainage channels integrated into the aluminum profiles help prevent water accumulation and improve protection in outdoor environments. The exterior powder-coated finish provides good color durability, scratch resistance, and protection against environmental impacts.

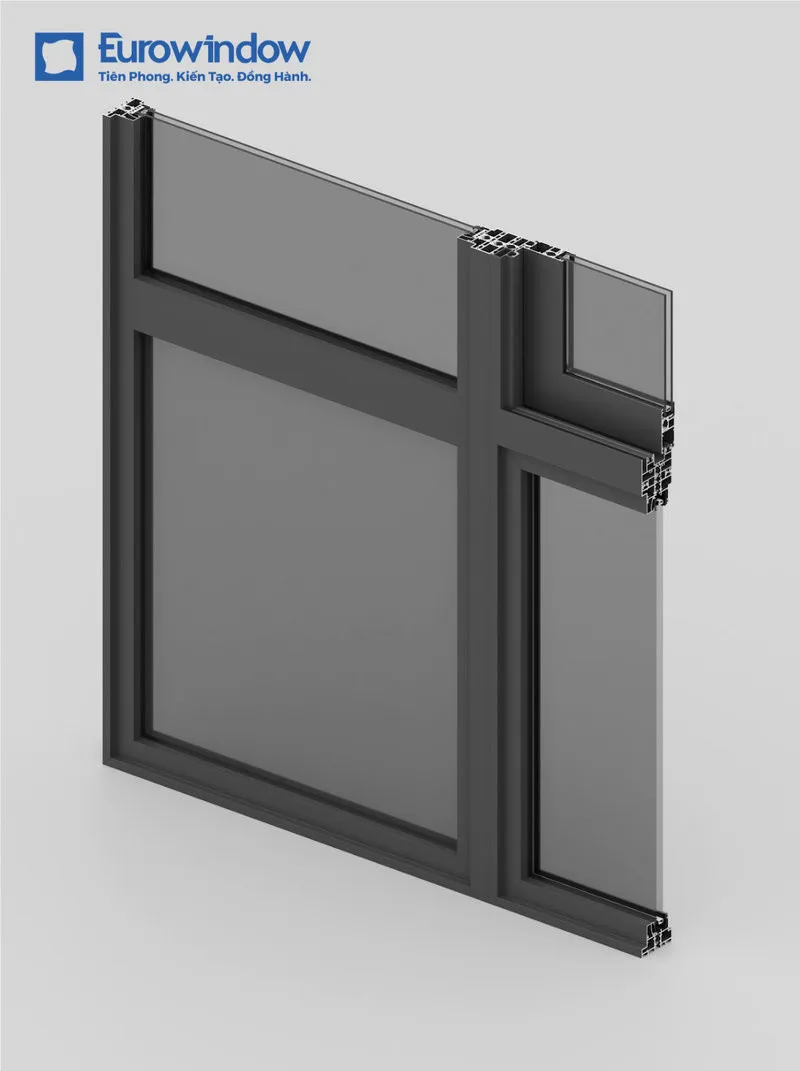

Reinforced 6063-T5 aluminum profiles enhance door durability and ensure stable operation.

Safety Glass with Optional Insulated Glass for Enhanced Sound and Thermal Insulation

Eurowindow’s single-leaf inward-opening door can be combined with single-pane tempered glass or safety glass with thicknesses ranging from 6 mm to 12 mm, meeting various project requirements.

For spaces requiring higher sound and thermal insulation performance, the door can use insulated glass units with thicknesses ranging from 18 mm to 32 mm.

The insulated glass unit can also be filled with inert gas to help reduce heat transfer and noise while contributing to improved energy efficiency within the interior space.

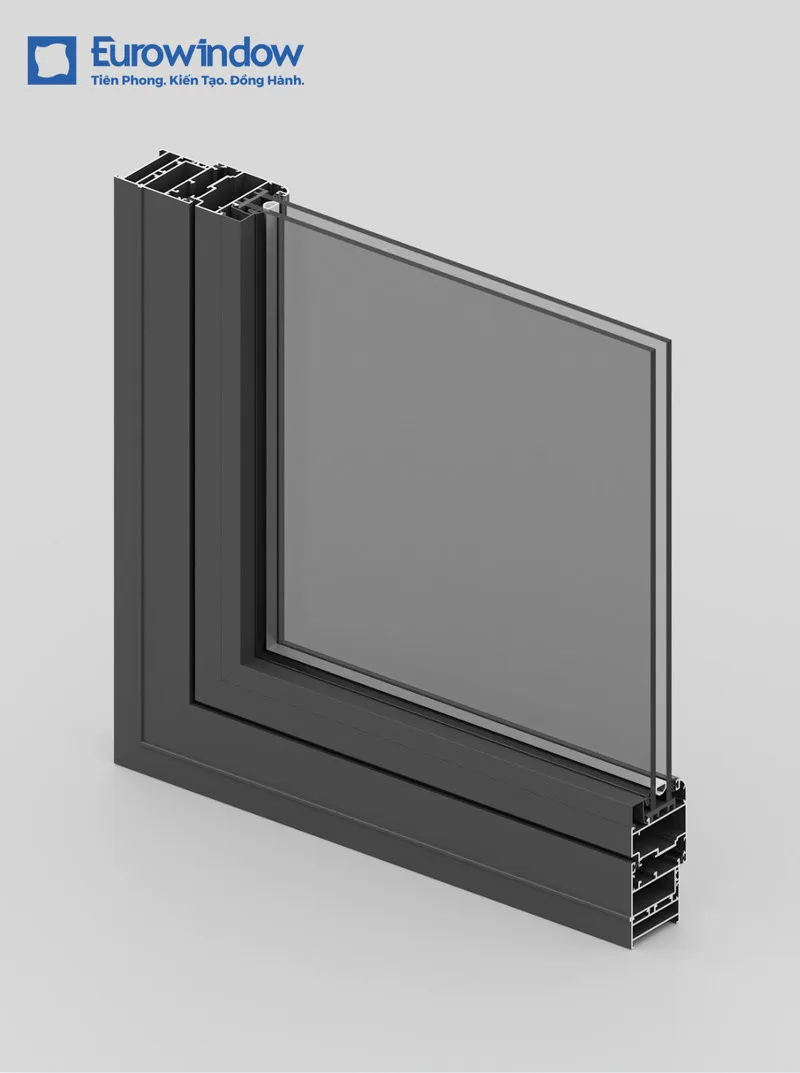

Insulated glass helps improve sound and thermal insulation while enhancing energy efficiency.

EPDM Gaskets and Synchronized Hardware for Enhanced Sealing Performance

Eurowindow’s single-leaf inward-opening door is equipped with an EPDM gasket system that offers good elasticity, resistance to aging, and long-term sealing performance.

Combined with a synchronized hardware system comprising multi-point locking mechanisms, hinges, handles, and locks, the door operates smoothly and stably while helping prevent water and air infiltration.

The synchronized structure enables the product to provide sound insulation of up to 32 dB, making it suitable for spaces requiring a quieter environment, such as bedrooms, offices, or areas directly exposed to the outdoors.
