Product introduction

Components:

  • Powder coated aluminum profile (door frame, side frames) ensures the main bearing structure of the door.
  • Single glass (  tempered, laminated): 5mm, 6mm, 6.38mm, 8mm, 8.38mm, 10mm, 10.38mm, 12mm, 12.38mm…
  • Insulated glass: 18mm, 20mm, 22mm, 24mm, 30mm, 32mm.
  • EPDM gaskets system ensures tight seal.
  • Metal accessories: Uniform metal accessories includes: multi-point latches, A-hinges, handles, screws, etc.

Specifications

Origin

Eurowindow

Profile

Powder coated 6063-T5 aluminum profile (door frame, side frames)

Single glass (  tempered, laminated)

Available thicknesses: 5mm, 6mm,6.38mm.8mm. 10mm; 10.38mm, 12mm, 12.38mm

Insulated glass

Available thicknesses: 18mm, 20mm, 22mm, 24mm, 30mm, 32mm

Gasket

EPDM gasket

Typicaldimensions:

1200x1800, 1400x2000, 1600x2400

Color

 Available colors:textured, glos gray; wood grain


Accessories

Uniform metal accessories includes: multi-point latches, A-hinges, handles, screws, etc

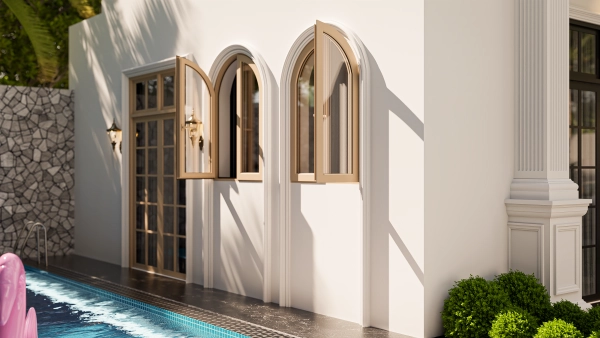

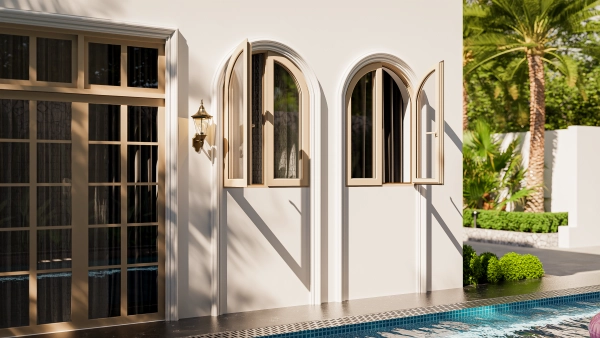

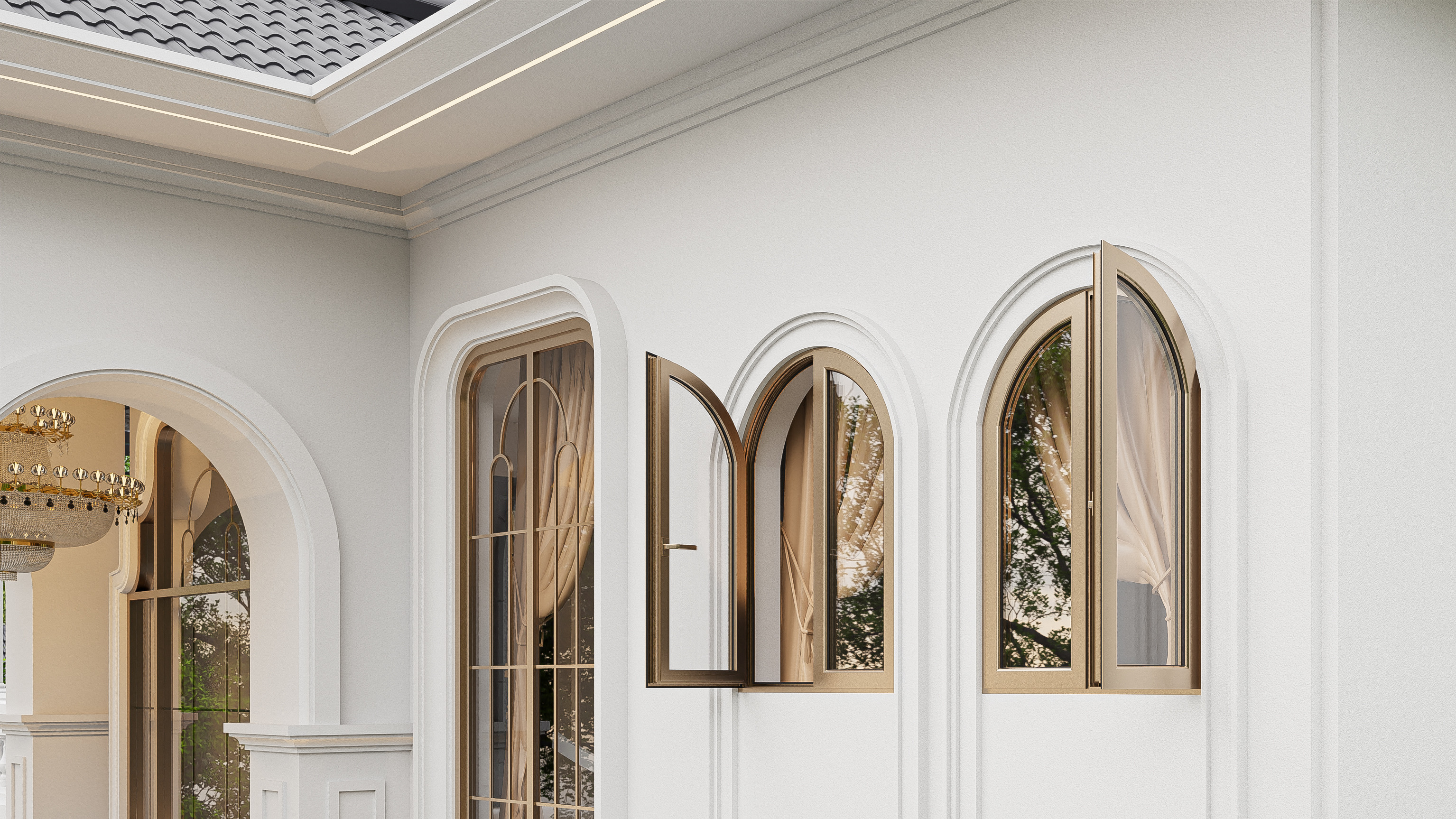

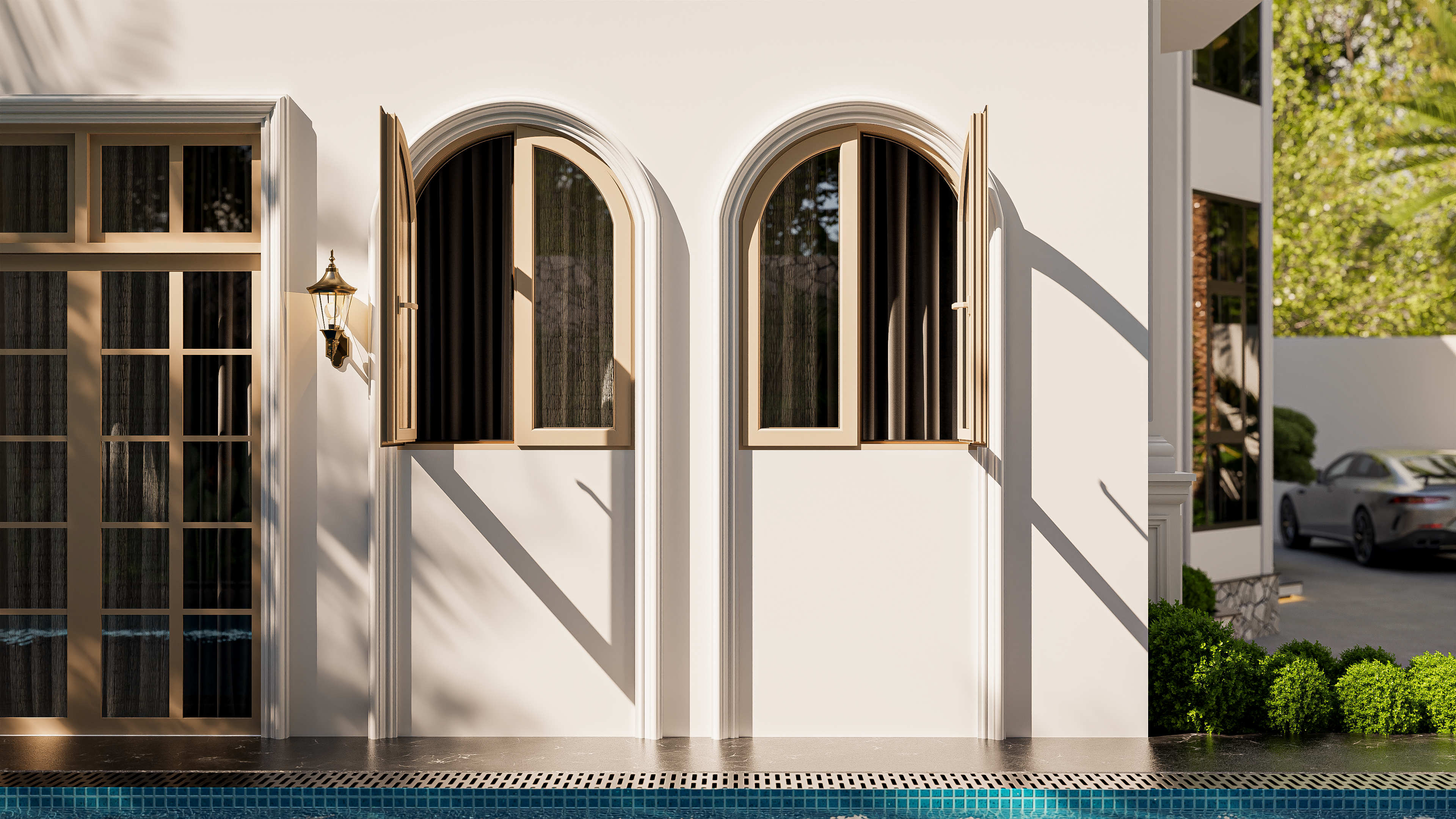

Application in construction
